Steam Trap, 3/4" NPT Outlet, SS Disc MPN:42-230A
Steam Trap, 3/4" NPT Outlet, SS Disc

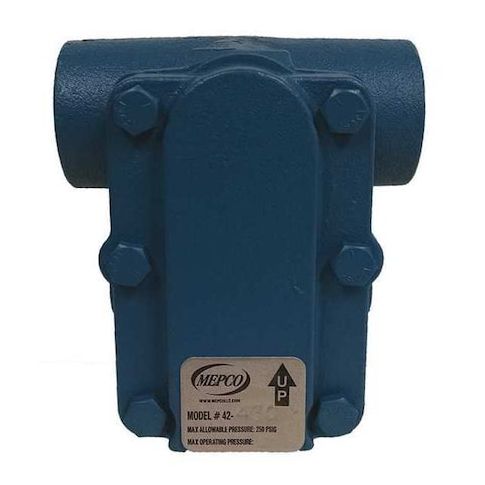

The Mepco Steam Trap is a reliable and efficient solution for managing low-pressure steam systems. Designed for use in applications such as pressing machines, risers, and space heaters, this steam trap features a stainless steel disc and graphite fiber gasket for maximum durability and resistance to corrosion. With a condensate capacity of 1,439 lb/hr, it can handle high volumes of condensate with ease. The trap's in-line configuration and 5-inch distance between inlet and outlet ports make it easy to integrate into existing systems, while its stainless steel float and air vent ensure optimal performance and longevity.
Top product features:
- In-line configuration allows for easy installation in tight spaces.
- Cast iron body provides durability and resistance to corrosion.
- Stainless steel float and air vent materials ensure resistance to corrosion and extend product lifespan.
Top product applications:
- Low Pressure Mains
- Pressing Machines
- Space Heaters
Steam Trap, Air Vent Material Stainless Steel, Allowable Temperature - Minimum 35 Degrees F, Application Low Pressure Mains, Pressing Machines, Risers, Space Heaters, Unit Heaters, Water Heaters, Body Material Cast Iron, Bolt Grade Grade 5, Condensate Capacity 1,439 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 5 in, Float Material Stainless Steel, Gasket Material Graphite Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.60
- Package Width: 6.50
- Package Height: 6.90
- Package Weight: 12.40
Product info last updated on January 30, 2026 11:30pm UTC
Category: HVACR and Appliance Controls
