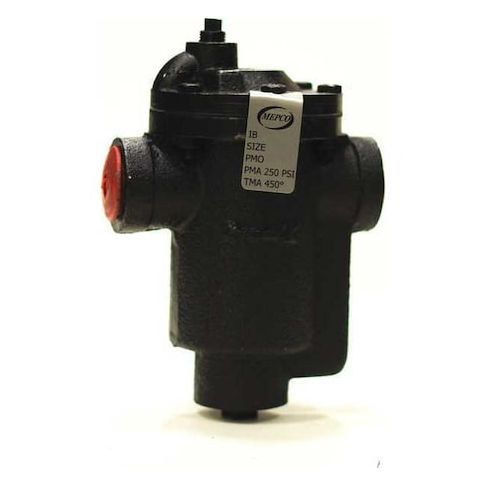

Steam Trap, 3/4" NPT Outlet, SS Disc MPN:IB11-2-30
Steam Trap, 3/4" NPT Outlet, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for managing condensate in various industrial applications. Suitable for use in blast coils, water heaters, laundry facilities, steam kettles, and other steam-based systems, this steam trap ensures optimal performance and energy efficiency. Its stainless steel disc and cast iron body provide durability and resistance to corrosion, while its non-asbestos fiber gasket ensures a secure seal. With a condensate capacity of 1,000 lb/hr and a compact in-line configuration, this steam trap is ideal for applications requiring precise temperature control and efficient condensate management.
Top product features:
- Allows condensate capacity of 1,000 lb/hr
- Has a stainless steel disc for durability and resistance to corrosion
- Includes an air vent for easy removal of non-condensable gases
Top product applications:
- Blast Coils
- Water Heaters
- Laundry
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 1,000 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 5 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Lever Assembly Material Stainless Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.00
- Package Height: 9.00
- Package Weight: 6.00
Product info last updated on February 26, 2026 12:58am UTC
Category: HVACR and Appliance Controls
