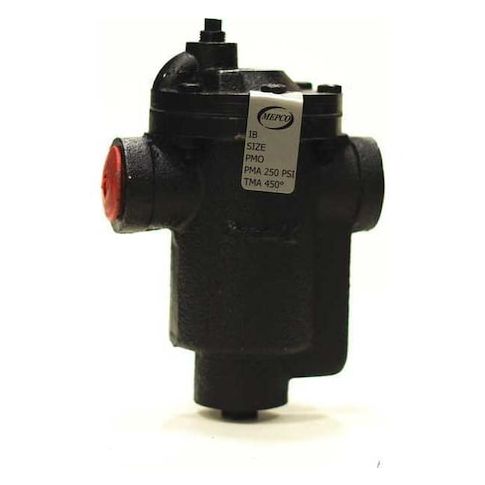

Steam Trap, 3/4" NPT Outlet, SS Disc MPN:IB11-3-250
Steam Trap, 3/4" NPT Outlet, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for various steam-powered applications. Suitable for blast coils, water heaters, laundry, steam kettles, and more, this steam trap ensures optimal performance and minimizes energy loss. Its durable cast iron body and stainless steel components withstand high temperatures and corrosion. With a condensate capacity of 765 lb/hr, it efficiently handles condensate removal. Easy to install and maintain, the steam trap features a horizontal orientation and includes an air vent for added convenience. Its compact design and long lead time make it a valuable addition to any steam-based system.
Top product features:
- Steam Trap allows for the removal of condensate from steam systems at a rate of 765 lb/hr.
- The product includes an air vent to prevent air from entering the steam system.
- The steam trap is designed for in-line installation with a distance of 5 in between the inlet and outlet ports.
Top product applications:
- Blast Coils
- Water Heaters
- Laundry
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 765 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 5 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Lever Assembly Material Stainless Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 6.50
- Package Height: 7.00
- Package Weight: 7.62
Product info last updated on February 1, 2026 2:27pm UTC
Category: HVACR and Appliance Controls
