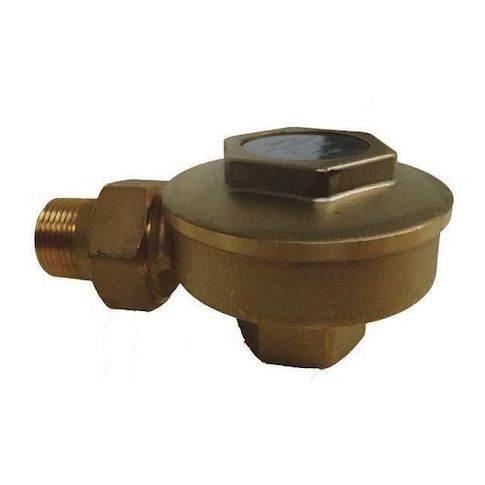

Steam Trap, 3/4" NPT Connections, SS Disc MPN:TH-2C-SWG
Steam Trap, 3/4" NPT Connections, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for various steam-based applications. Suitable for use in coffee urns, pipe coils, and sterilizers, this steam trap features a stainless steel disc and brass body, ensuring durability and resistance to corrosion. With a condensate capacity of 1,800 lb/hr and a maximum allowable pressure of 125 psi, it effectively manages steam condensate while withstanding high pressure. The compact design and horizontal installation orientation make it easy to integrate into existing systems, providing a seamless and efficient steam management solution.
Top product features:
- Has a straight-thru configuration
- Includes an air vent
- Has a condensate capacity of 1,800 lb/hr
Top product applications:
- Coffee Urns
- Pipe Coils
- Sterilizers
Steam Trap, Actuator Material Stainless Steel, Allowable Pressure - Maximum 125 psi, Application Coffee Urns, Pipe Coils, Sterilizers, Body Material Brass, Condensate Capacity 1,800 lb/hr, Configuration Straight-Thru, Distance Between Inlet and Outlet Port 3 1/4 in, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Inlet Port Connection Gender Female, Inlet Port Connection Size 3/4 in, Inlet Port Connection Type NPT, Installation Orientation Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 2.75
Product info last updated on February 2, 2026 6:50pm UTC
Category: HVACR and Appliance Controls
