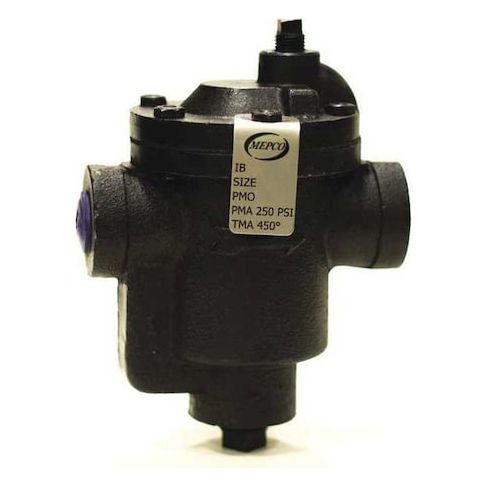

Steam Trap, 1/2" NPT Connections, SS Disc MPN:IB00-2-150G
Steam Trap, 1/2" NPT Connections, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for managing steam condensate in various applications. Suitable for use in blast coils, process equipment, water heaters, laundry facilities, and steam kettles, this steam trap ensures optimal performance and energy efficiency. Its cast iron body and stainless steel float provide durability and resistance to corrosion, while its non-asbestos fiber gasket ensures a tight seal. With a condensate capacity of 572 lb/hr, this steam trap is ideal for applications requiring high condensate removal rates. Its compact design and easy installation make it a convenient choice for a wide range of industries.
Top product features:
- In-line configuration allows for easy installation in a variety of applications.
- Allowable temperature range is from 35 Degrees F, enabling safe operation in cold environments.
- Stainless steel float material ensures durability and resistance to corrosion.
Top product applications:
- Blast Coils
- Process Equipment
- Water Heaters
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Process Equipment, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Condensate Capacity 572 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 5 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 6.20
- Package Height: 5.40
- Package Weight: 6.95
Product info last updated on March 14, 2026 2:02am UTC
Category: HVACR and Appliance Controls
