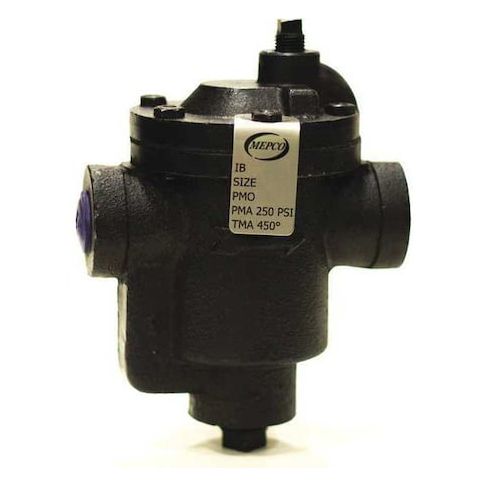

Steam Trap, 1/2" NPT Connections, SS Disc MPN:IB00-2-125G
Steam Trap, 1/2" NPT Connections, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for various industrial applications, including blast coils, process equipment, water heaters, laundry, and steam kettles. With a minimum allowable temperature of 35°F, this steam trap can operate in a wide range of environments. Its in-line configuration and 5-inch distance between inlet and outlet ports make it easy to install and integrate into existing systems. The trap's condensate capacity of 685 lb/hr ensures efficient condensate removal, reducing the risk of water hammer and equipment damage. Suitable for horizontal installation, this steam trap is a valuable addition to any steam-based system.
Top product features:
- Allowable temperature range of 35 Degrees F
- Cast iron body material
- Stainless steel float material
Top product applications:
- Blast Coils
- Process Equipment
- Laundry
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Process Equipment, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Condensate Capacity 685 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 5 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 6.40
- Package Height: 6.60
- Package Weight: 6.70
Product info last updated on January 31, 2026 8:27am UTC
Category: HVACR and Appliance Controls
