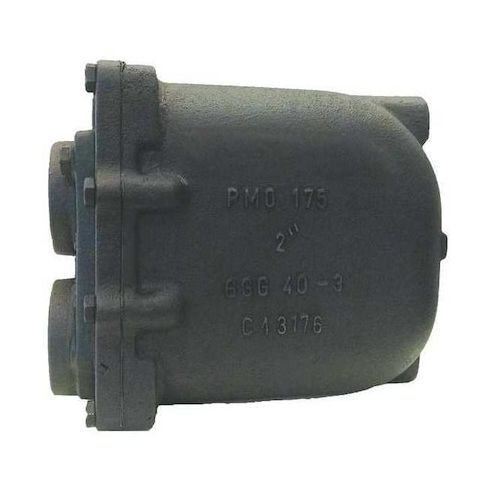

Steam Trap, 2" NPT Connections, SS Disc MPN:MLFT2175-8G
Steam Trap, 2" NPT Connections, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for managing condensate in steam lines. With a maximum capacity of 56,609 lb/hr at 175 psi, it effectively handles high-pressure steam systems. Its compact C-pattern design allows for easy installation in horizontal orientations, while the stainless steel float and disc ensure durability and resistance to corrosion. Suitable for use in a variety of applications, including power plants, chemical processing, and food processing, this steam trap provides a cost-effective and low-maintenance solution for condensate management. Its ability to operate at temperatures as low as 35°F makes it ideal for cold climates.
Top product features:
- Allowable Temperature Minimum 35 Degrees F
- C Pattern Configuration
- Stainless Steel Float Material
Top product applications:
- Steam Lines
- Cast Iron
- Horizontal Installation
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Steam Lines, Body Material Cast Iron, Condensate Capacity 56,609 lb/hr, Configuration C Pattern, Distance Between Inlet and Outlet Port 16 1/2 in, Float Material Stainless Steel, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Maximum Capacity at Maximum Pressure Load 56,609 lb/hr at 175 psi, Number of Ports 2, Operating Pressure - Maximum 175 psi
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 9.00
- Package Height: 17.00
- Package Weight: 62.00
Product info last updated on February 1, 2026 3:30am UTC
Category: HVACR and Appliance Controls
