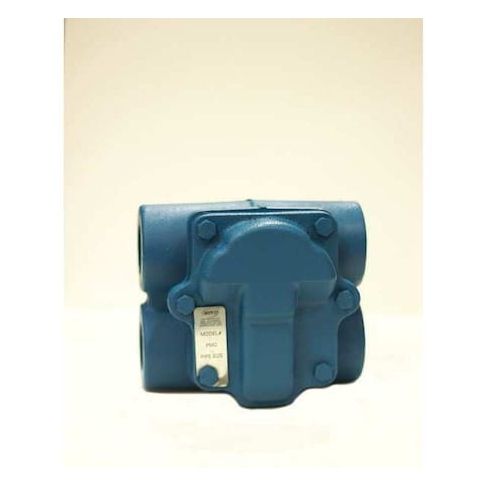

Steam Trap, 1-1/2" NPT Connections MPN:44-730G
Steam Trap, 1-1/2" NPT Connections
The Mepco Steam Trap is a reliable and efficient solution for steam heating and process equipment applications. With a cast iron body and stainless steel float, this trap can withstand extreme temperatures and condensate capacities of up to 4,300 lb/hr. Its H-pattern configuration and 5 3/4 inch distance between inlet and outlet ports ensure optimal performance and ease of installation. Ideal for use in horizontal orientations, this steam trap is perfect for a variety of applications, including industrial process equipment and commercial steam heating systems, providing a cost-effective and low-maintenance solution for condensate management.
Top product features:
- Cast Iron Body Material
- Stainless Steel Float Material
- Non-Asbestos Fiber Gasket Material
Top product applications:
- Steam Heating
- Process Equipment
- Horizontal Installation
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Steam Heating, Process Equipment, Body Material Cast Iron, Condensate Capacity 4,300 lb/hr, Configuration H Pattern, Distance Between Inlet and Outlet Port 5 3/4 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Lever Assembly Material Stainless Steel, Manufacturer Series 44
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.70
- Package Width: 8.70
- Package Height: 8.80
- Package Weight: 17.10
Product info last updated on January 27, 2026 8:53pm UTC
Category: HVACR and Appliance Controls
