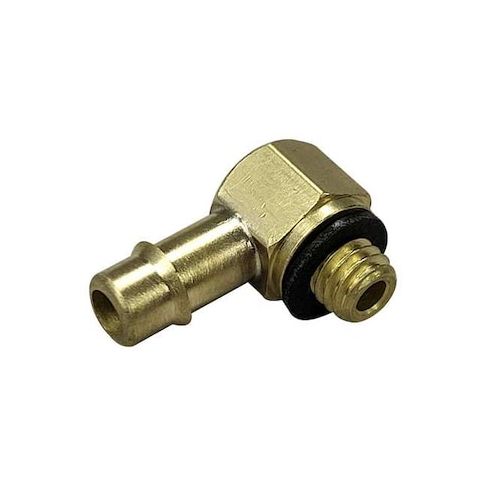

Elbow, Brass, Threaded1/4", Barbed1/16" MPN:4-28LB1-NP
Elbow, Brass, Threaded1/4", Barbed1/16"
This 1/4in brass elbow fitting is designed for connecting tubes to pipes in a variety of applications, including air, fuels, and non-potable water systems. The threaded connection on one side and barbed connection on the other provide a secure and leak-free seal. The beaded barb style ensures a strong grip on the tube, while the nickel-plated finish provides corrosion resistance. With a maximum operating pressure of 120 psi and temperature of 230°F, this fitting is suitable for a range of industrial and commercial use cases. It's ideal for HVAC, plumbing, and fluid transfer systems.
Top product features:
- Threaded connection on Fitting Side A allows for secure attachment to a pipe.
- Barbed connection on Fitting Side B allows for secure attachment to a tube.
- Nickel-plated finish provides corrosion resistance.
Top product applications:
- Air
- Fuels
- Non-Potable Water
Barbed Fitting Elbow, Fitting Side A Connection Type Male Straight Thread, Fitting Side B Connection Type Barbed, Fitting Side A Pipe Size 1/4 in, Fitting Side B Tube Inner Diameter 1/16 in, Barb Style Beaded, Fitting Material Brass, Material Grade CA360, Finish/Coating Nickel-Plated, Overall Length 17/32 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Application Air, Fuels, Non-Potable Water, Maximum Operating Pressure 120 psi @ 72 Degrees F, Maximum Operating Temperature 230 Degrees F
Additional Information
- Country of Origin: CH
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 3
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 2.00
Product info last updated on March 6, 2026 8:03pm UTC
Category: Pipes, Valves and Fittings
