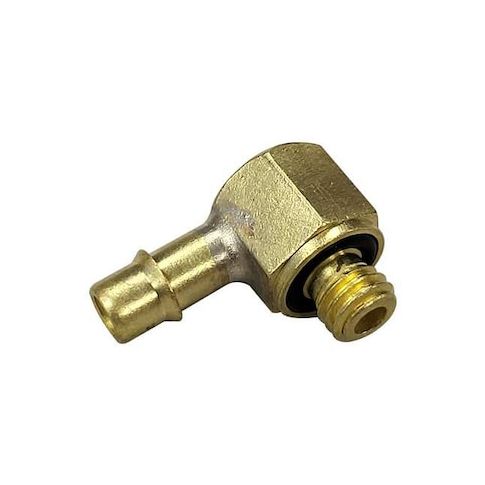

Elbow, Brass, MNPT 3/16", Barbed 1/16" MPN:10LB1-NP
Elbow, Brass, MNPT 3/16", Barbed 1/16"
This brass barbed elbow fitting is designed for use in a variety of applications, including air, fuels, and non-potable water systems. Its 3/16-inch MNPT connection on one side and 1/16-inch barbed connection on the other provide a secure and reliable connection. The beaded barb style ensures a tight seal, while the nickel-plated finish provides corrosion resistance. With a maximum operating pressure of 120 psi and temperature of 230°F, this fitting is suitable for a range of industrial and commercial applications. Its compact size and durable construction make it an ideal choice for use in tight spaces or high-pressure systems.
Top product features:
- 90-degree elbow adapter connects two tubes at a right angle
- Beaded barb style securely attaches to 1/16in inner diameter tubing
- Nickel-plated brass construction provides corrosion resistance and durability
Top product applications:
- Air
- Fuels
- Non-Potable Water
Barbed Fitting Elbow, Fitting Side A Connection Type MNPT, Fitting Side B Connection Type Barbed, Fitting Side A Pipe Size 3/16 in, Fitting Side B Tube Inner Diameter 1/16 in, Barb Style Beaded, Fitting Material Brass, Material Grade CA360, Finish/Coating Nickel-Plated, Overall Length 13/32 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Application Air, Fuels, Non-Potable Water, Maximum Operating Pressure 120 psi @ 72 Degrees F, Maximum Operating Temperature 230 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 3
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 2.00
Product info last updated on February 8, 2026 1:48pm UTC
Category: Pipes, Valves and Fittings
