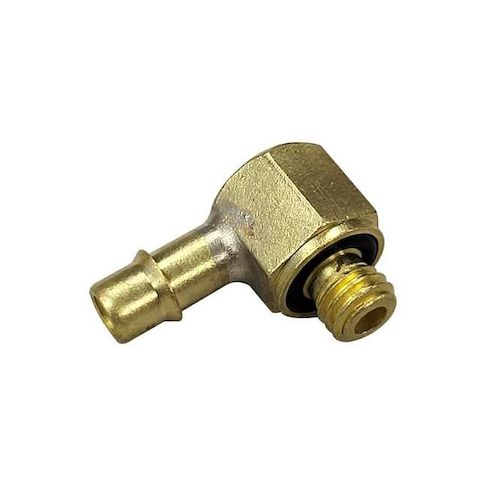

Elbow, Brass, MNPT 3/16", Barbed 1/8" MPN:10LB3
Elbow, Brass, MNPT 3/16", Barbed 1/8"
This brass elbow fitting is designed for use in a variety of applications, including air, fuels, and non-potable water systems. Its barbed connection on one end allows for secure attachment to tubing with an inner diameter of 1/8 inch, while the male NPT connection on the other end provides a reliable connection to pipes with a 3/16 inch diameter. The beaded barb style ensures a leak-free seal, and the brass material provides excellent corrosion resistance. With a maximum operating pressure of 120 psi and a temperature range of -40 to 230 degrees F, this elbow fitting is suitable for a wide range of industrial and commercial applications.
Top product features:
- 90-degree elbow adapter connects two tubes at a right angle
- Barbed fitting allows for secure connection to 1/8 inch inner diameter tubing
- Beaded barb style provides a reliable seal with 3/16 inch pipe size
Top product applications:
- Air
- Fuels
- Non-Potable Water
Barbed Fitting Elbow, Fitting Side A Connection Type MNPT, Fitting Side B Connection Type Barbed, Fitting Side A Pipe Size 3/16 in, Fitting Side B Tube Inner Diameter 1/8 in, Barb Style Beaded, Fitting Material Brass, Material Grade 360, Overall Length 7/16 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Application Air, Fuels, Non-Potable Water, Maximum Operating Pressure 120 psi @ 72 Degrees F, Maximum Operating Temperature 230 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 3
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.70
- Package Height: 0.70
- Package Weight: 0.02
Product info last updated on March 8, 2026 12:12am UTC
Category: Pipes, Valves and Fittings
