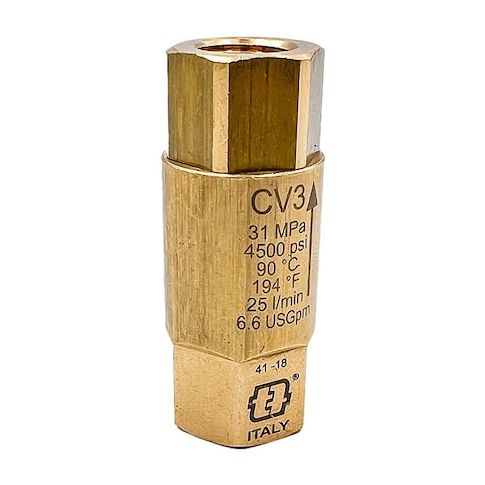

Check Valve, Inline Spring Piston, 1/4 in FNPT x FNPT, Brass Body, 3 psi Cracking Pressure MPN:CV3-31014
This 1/4in FNPT Spring Check Valve from Mecline is a reliable and efficient solution for various applications, including residential and commercial plumbing systems. Its single-flow design and inline spring piston mechanism ensure smooth operation and minimal pressure drop. Suitable for use with water and compatible with temperatures ranging from 40°F to 194°F, this valve is ideal for applications where backflow prevention is essential. Its compact size and lightweight design make it easy to install and maintain, making it a great choice for plumbers and DIY enthusiasts alike.
Top product features:
- This product has a spring piston mechanism to allow for smooth flow control.
- It features an inline design for easy installation in tight spaces.
- The valve has a stainless steel seat for durability and resistance to corrosion.
Top product applications:
- Water Treatment Systems
- Steam Power Plants
- Industrial Process Control Systems
MECLINE CV3-31014 is an inline spring piston check valve configured for one-direction water flow and reverse-flow checking. This 1/4 in valve is rated for 4,500 psi maximum operating water pressure and can be installed in horizontal or vertical piping systems. Its brass body, stainless steel internal components, and Buna-N seal support applications specifying a check valve with a 4,500 psi maximum operating pressure, 3 psi cracking pressure, and listed material construction.
Key Features:
- Inline spring piston design: Check valve with a piston mechanism in an inline body.
- Connection size and type: 1/4 in FNPT x FNPT with female NPT connections on both ends.
- Pressure rating: 4,500 psi maximum operating water pressure.
- Cracking pressure: 3 psi.
- Flow capacity: 6.6 gpm.
- Materials: Brass body with 316 stainless steel check mechanism, stainless steel seat and spring, and Buna-N seal.
- Temperature range: 40 degrees F minimum to 194 degrees F maximum.
- Full flow: Yes.
- Mounting orientation: Horizontal or vertical.
- Overall size: 2.13 in overall length with 7/8 in height and width
- 25/32 in hex size.
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 1.40
- Package Height: 1.00
- Package Weight: 0.26
