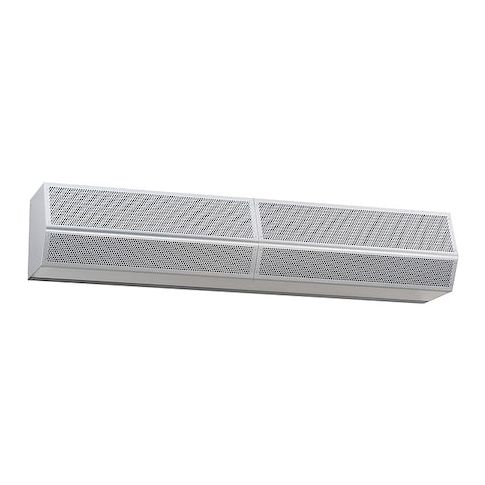

Washdown Air Curtain, 15 1/2" D, 96" W MPN:HV296-2UH-TS-WD
Washdown Air Curtain, 15 1/2" D, 96" W
The Mars Washdown Air Curtain is a high-performance solution for protecting facilities from airborne contaminants. Its standard profile design and 96-inch width make it ideal for large frame openings, such as warehouse doors or loading docks. The air curtain's maximum air velocity of 2,447 fpm and volume of 4,894 cfm ensure effective washdown and insect control, while its 14-foot mounting height provides optimal temperature control. Suitable for food processing, pharmaceutical, and other critical environments, this air curtain is a reliable choice for maintaining a clean and controlled environment.
Top product features:
- Provides temperature control through mounting at a height of 14 ft
- Creates a pressure boundary to prevent insects from entering the area when mounted at a height of 12 ft
- Delivers a maximum air volume of 4,894 cfm to maintain a clean and controlled environment
Top product applications:
- Food Processing Plants
- Cleanrooms and Laboratories
- Pharmaceutical Manufacturing Facilities
Washdown Air Curtain, For Frame Opening Width 8 ft, Mounting Height for Temperature Control 14 ft, Overall Depth 15 1/2 in, Overall Height 14 in, Overall Width 96 in, Profile Type Standard Profile, Heated/Not Heated Not Heated, Maximum Air Velocity 2,447 fpm, Mounting Height for Insect Control 12 ft, Maximum Air Volume 4,894 cfm, Nameplate Voltage 460V AC, Air Temperature Rise Not Applicable, Sound Level @ 10 ft 73 dBA, Housing Color Silver, Phase 3, Housing Material Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 100 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 100.00
- Package Width: 32.00
- Package Height: 23.00
- Package Weight: 231.00
Product info last updated on April 4, 2026 6:38am UTC
Category: Fans
