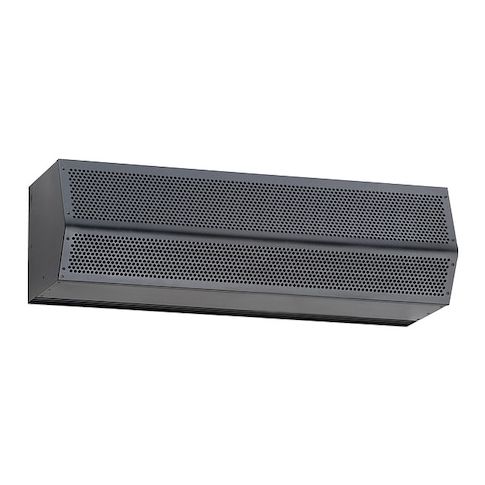

Explosion Proof Air Curtain, 42" W MPN:STD242-1UA-OB-XP
Explosion Proof Air Curtain, 42" W
The Explosion Proof Air Curtain from Mars is a vital safety solution for hazardous locations, protecting personnel and equipment from airborne contaminants and ignition sources. Designed for frame openings up to 3.5 feet wide, this air curtain provides a safe and controlled environment for industries such as chemical processing, pharmaceuticals, and food manufacturing. Its high air velocity and maximum air volume ensure effective temperature and insect control, while its explosion-proof design meets stringent safety standards. Ideal for use in areas with explosive atmospheres, this air curtain is a reliable and essential component for maintaining a safe working environment.
Top product features:
- Explosion Proof design allows safe installation in hazardous environments
- Heated/Not Heated Not Heated feature indicates no temperature control is provided
- Maximum Air Velocity of 1,945 fpm provides effective air flow and circulation
Top product applications:
- Explosion proof environments such as chemical plants or refineries
- Gas stations with high flammability risks
- Pharmaceutical or food processing facilities that require strict air quality control
Explosion Proof Air Curtain, For Frame Opening Width 3 1/2 ft, Mounting Height for Temperature Control 12 ft, Overall Depth 12 3/4 in, Overall Height 10 5/8 in, Overall Width 42 in, Profile Type Standard Profile, Heated/Not Heated Not Heated, Maximum Air Velocity 1,945 fpm, Mounting Height for Insect Control 10 ft, Maximum Air Volume 1,418 cfm, Nameplate Voltage 115V AC, Air Temperature Rise Not Applicable, Sound Level @ 10 ft 66 dBA, Housing Color Black, Phase 1, Housing Material Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 100 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 46.00
- Package Width: 16.00
- Package Height: 14.00
- Package Weight: 64.00
Product info last updated on April 6, 2026 6:37pm UTC
Category: Fans
