Air Curtain, 26" D, 16 1/2" H, 72" W MPN:PH1072-2EHN-PW

Discount: See in Cart
Free Shipping
In Stock
Brand: Mars
Part #: PH1072-2EHN-PW
SKU
510-G410718547
Regular Price $7,558.31 Special Price $5,398.79

BBB Accredited - ResellerRatings Elite Member - SBA Service-Disabled Veteran-Owned Certified

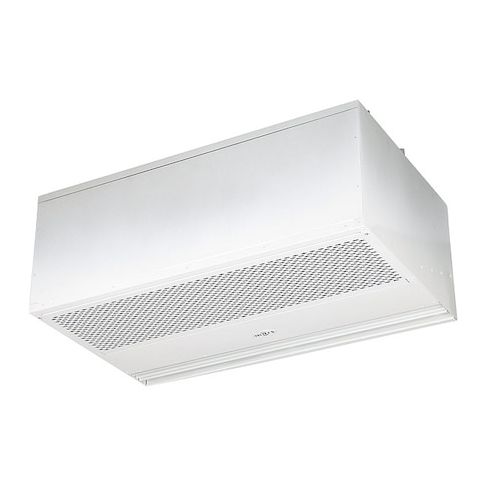

Air Curtain, 26" D, 16 1/2" H, 72" W

This air curtain provides a seamless and energy-efficient solution for maintaining a comfortable indoor environment while keeping pests and drafts at bay. Ideal for use in commercial settings such as restaurants, retail stores, and warehouses, it can be mounted at a height of 12 feet for optimal temperature control and 10 feet for effective insect control. With a maximum air velocity of 1,623 fpm and a sound level of 68 dBA, it is both efficient and discreet. Suitable for frame openings up to 6 feet wide, it is a versatile and reliable addition to any commercial space.

Top product features:

  • Heated for temperature control
  • Maximum air velocity of 1,623 fpm for effective air circulation
  • Air temperature rise of 31 Degrees F for efficient heating

Top product applications:

  • Restaurants and Bars: The air curtain can be installed at the entrance of restaurants and bars to keep insects and pests out while allowing warm air to escape, maintaining a comfortable temperature inside.
  • Commercial Kitchens: The air curtain can be used in commercial kitchens to control temperature and humidity, keeping the kitchen area clean and pest-free by preventing insects and pests from entering.
  • Retail Stores: The air curtain can be installed at the entrance of retail stores to maintain a consistent temperature and prevent insects and pests from entering, creating a comfortable shopping environment for customers.
Air Curtain, For Frame Opening Width 6 ft, Mounting Height for Temperature Control 12 ft, Overall Depth 26 in, Overall Height 16 1/2 in, Overall Width 72 in, Profile Type Recessed, Heated/Not Heated Heated, Maximum Air Velocity 1,623 fpm, Mounting Height for Insect Control 10 ft, Maximum Air Volume 2,434 cfm, Nameplate Voltage 460V AC, Air Temperature Rise 31 Degrees F, Sound Level @ 10 ft 68 dBA, Housing Color White, Phase 3, Housing Material Aluminum, Heater Power Consumption 24 kW

Additional Information

  • Country of Origin: US
  • Drop Ship Item: Yes
  • Blind Ship Eligible: No
  • LTL Freight Required: No
  • Lead Time: Ships in 20 days
  • Minimum Order Quantity: 1
  • Unit of Measure: EA
  • Package Length: 84.00
  • Package Width: 22.00
  • Package Height: 35.00
  • Package Weight: 223.00
