Standard Series 2 Air Curtain 72IN MPN:STD272-2UG-OB

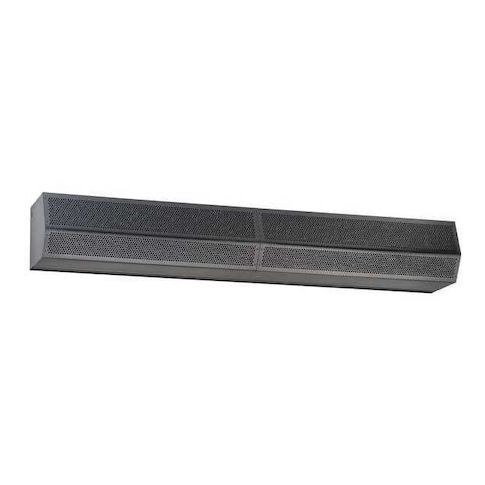

Standard Series 2 Air Curtain 72IN
The Standard Series 2 Air Curtain 72IN from Mars is a reliable and efficient solution for maintaining a consistent temperature and preventing heat transfer in commercial and industrial settings. Its 72-inch width and 10-foot mounting height make it ideal for large doors and openings, while its 1/2 horsepower motor and 1,750 RPM ensure a strong airflow. This air curtain requires a door limit switch and motor control panel, making it a straightforward installation. Suitable for use in restaurants, warehouses, and other high-traffic areas, the Standard Series 2 Air Curtain provides a cost-effective and energy-efficient way to manage air temperature and flow.
Top product features:
- Air Curtain provides a 72-inch wide airflow barrier
- Air Curtain operates at a maximum speed of 1,750 RPM
- Air Curtain requires a door limit switch and motor control panel for safe operation
Top product applications:
- Restaurant or food service establishments to prevent pests and insects from entering through doors
- Commercial kitchens to maintain a clean and sanitary environment
- Retail stores to keep dust and debris out of the store while allowing customers to enter and exit freely
Air Curtain, Max. Mounting Height 10 ft, Width 72 in, Height 10 5/8 in, Depth 12 3/4 in, Number of Motors 2, 3 Phase, Voltage 208/230, Max. Amps 3.6, 60 Hz, Housing Color Obsidian Black, Motor Type 3 Phase, Motor Enclosure Totally Enclosed Air Over, Motor HP 1/2 hp, Max. RPM 1,750 RPM, Number of Speeds 1, Requires Door Limit Switch, Motor Control Panel, Standards ETL
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 120.00
