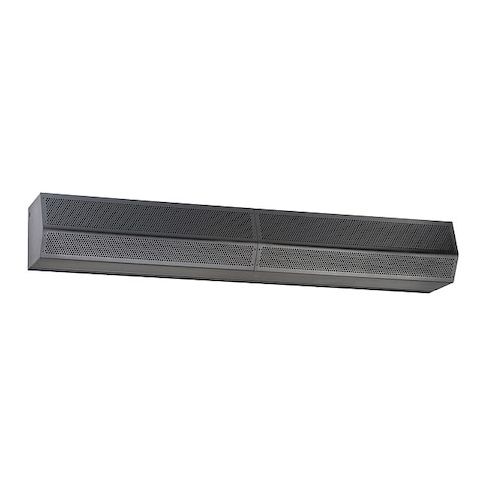

Washdown Air Curtain, 12 3/4" D, 60" W MPN:STD260-2UA-OB-WD
Washdown Air Curtain, 12 3/4" D, 60" W
The Washdown Air Curtain from Mars is a reliable solution for maintaining a clean and controlled environment in various industries. Its standard profile design and 60-inch width make it suitable for frame openings of up to 5 feet, while its mounting height and temperature control features ensure optimal performance. This air curtain is ideal for use in food processing, pharmaceutical, and healthcare facilities, providing a barrier against insects and dust while maintaining a consistent air temperature. Its low sound level and efficient design make it a cost-effective and quiet solution for maintaining a clean and controlled environment.
Top product features:
- Washdown Air Curtain provides insect control at a mounting height of 10 ft
- Washdown Air Curtain maintains a maximum air velocity of 2,633 fpm
- Washdown Air Curtain operates at a sound level of 68 dBA at a distance of 10 ft
Top product applications:
- Washdown Air Curtain for food processing areas to prevent contamination and maintain a clean environment.
- Washdown Air Curtain for pharmaceutical manufacturing facilities to control temperature and humidity levels.
- Washdown Air Curtain for laboratory settings to maintain a sterile environment and prevent airborne contamination.
Washdown Air Curtain, For Frame Opening Width 5 ft, Mounting Height for Temperature Control 12 ft, Overall Depth 12 3/4 in, Overall Height 10 5/8 in, Overall Width 60 in, Profile Type Standard Profile, Heated/Not Heated Not Heated, Maximum Air Velocity 2,633 fpm, Mounting Height for Insect Control 10 ft, Maximum Air Volume 2,743 cfm, Nameplate Voltage 115V AC, Air Temperature Rise Not Applicable, Sound Level @ 10 ft 68 dBA, Housing Color Black, Phase 1, Housing Material Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 100 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 64.00
- Package Width: 16.00
- Package Height: 19.00
- Package Weight: 132.00
Product info last updated on February 4, 2026 4:26am UTC
Category: Fans
