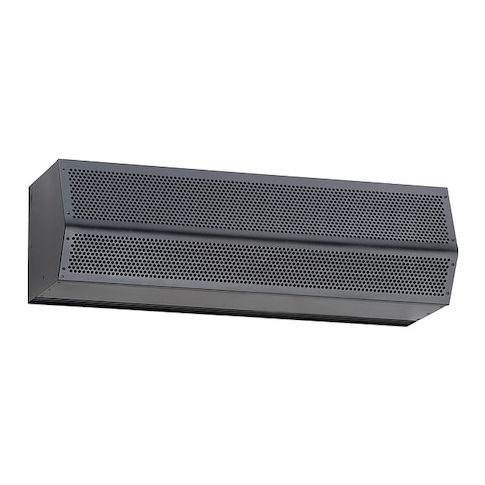

Washdown Air Curtain, 12 3/4" D, 42" W MPN:STD242-1UA-OB-WD
Washdown Air Curtain, 12 3/4" D, 42" W
Protect your facility from contaminants and pests with the Mars Washdown Air Curtain. This durable, steel housing air curtain is ideal for use in food processing, pharmaceutical, and other high-temperature applications. With a maximum air velocity of 1,945 fpm and a maximum air volume of 1,418 cfm, it effectively controls temperature and prevents insects from entering. Its 66 dBA sound level ensures a quiet operation. The air curtain is easy to install, with a mounting height of 12 ft for temperature control and 10 ft for insect control. Order now and ensure a clean and safe environment for your facility.
Top product features:
- Heated air curtain is not available, but the air curtain is designed to provide a temperature-controlled environment.
- The air curtain is designed to control insects by creating a barrier at a mounting height of 10 ft.
- The air curtain is capable of moving a maximum air volume of 1,418 cfm.
Top product applications:
- Food Processing Plants
- Pharmaceutical Manufacturing Facilities
- Laboratories
Washdown Air Curtain, For Frame Opening Width 3 1/2 ft, Mounting Height for Temperature Control 12 ft, Overall Depth 12 3/4 in, Overall Height 10 5/8 in, Overall Width 42 in, Profile Type Standard Profile, Heated/Not Heated Not Heated, Maximum Air Velocity 1,945 fpm, Mounting Height for Insect Control 10 ft, Maximum Air Volume 1,418 cfm, Nameplate Voltage 115V AC, Air Temperature Rise Not Applicable, Sound Level @ 10 ft 66 dBA, Housing Color Black, Phase 1, Housing Material Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 100 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 46.00
- Package Width: 16.00
- Package Height: 14.00
- Package Weight: 64.00
Product info last updated on January 30, 2026 4:21am UTC
Category: Fans
