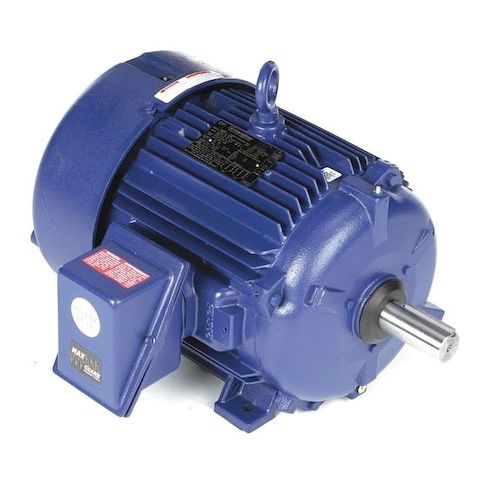

Three-Phase Severe Duty Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1772 rpm Nameplate RPM MPN:254TTFCD6529
Three-Phase Severe Duty Motor, 15 HP, 254T Frame, 230/460V AC Voltage, 1772 rpm Nameplate RPM
This 15 HP three-phase severe duty motor from Marathon is designed for demanding applications where reliability and performance are crucial. With a totally enclosed fan cooled motor enclosure and rigid base mounting, it can withstand harsh environments and extreme temperatures. Its nameplate RPM of 1772 and continuous duty rating make it suitable for 24/7 operations. The motor's high efficiency of 93.6% and service factor of 1.15 ensure optimal performance and longevity. Ideal for use in manufacturing, oil and gas, and other industries where high-torque applications are required, this motor provides a reliable and efficient solution for demanding tasks.
Top product features:
- Three-Phase operation for efficient power distribution
- Totally Enclosed Fan Cooled Motor Enclosure for reliable operation in harsh environments
- Ball Motor Bearings for smooth and quiet rotation
Top product applications:
- Industrial Automation
- Material Handling Equipment
- Pumping Systems
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 1772 rpm, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 37.5/18.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.30
- Package Width: 24.00
- Package Height: 21.30
- Package Weight: 355.00
Product info last updated on February 15, 2026 11:44pm UTC
Category: Motors
