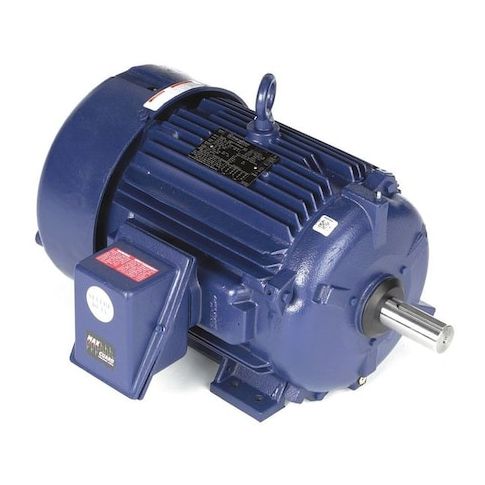

Three-Phase Severe Duty Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1, 768 Nameplate RPM MPN:256TTFCD6529
Three-Phase Severe Duty Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1, 768 Nameplate RPM
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,768, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.5/24.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.25
- Package Width: 22.25
- Package Height: 18.00
- Package Weight: 400.00
Product info last updated on March 11, 2026 9:38pm UTC
Category: Motors
