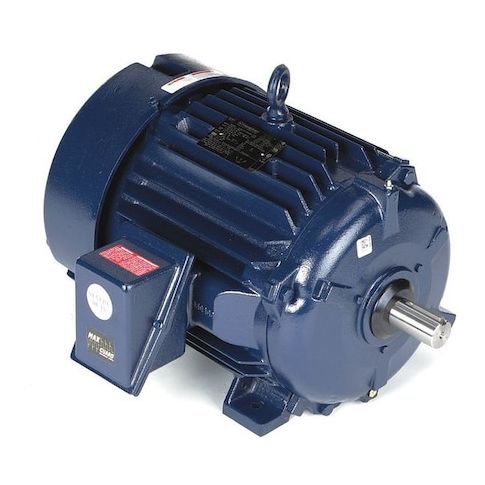

Three-Phase Severe Duty Motor, 25 hp HP, 284TS Frame, 460V AC Voltage, 3, 555 RPM Nameplate RPM MPN:284TSTFCD6501
Three-Phase Severe Duty Motor, 25 hp HP, 284TS Frame, 460V AC Voltage, 3, 555 RPM Nameplate RPM
This severe duty motor is designed for continuous operation in high-temperature environments and is suitable for a wide range of industrial applications. With a 25 hp rating and 3,555 RPM nameplate speed, it can handle demanding tasks such as heavy-duty pumping, conveying, and material handling. The motor's totally enclosed fan-cooled design and Class H insulation ensure reliable operation and long lifespan. Its hazardous location rating and continuous duty cycle make it an ideal choice for use in harsh environments, such as chemical processing, manufacturing, and oil and gas industries.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan cooled for reliable operation in harsh environments
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Heavy Industry Processing
- Chemical Plant Operations
- Oil and Gas Refining
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 3,555 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 30.0 A, 284TS Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 21.89
- Package Weight: 490.00
Product info last updated on January 17, 2026 4:52am UTC
Category: Motors
