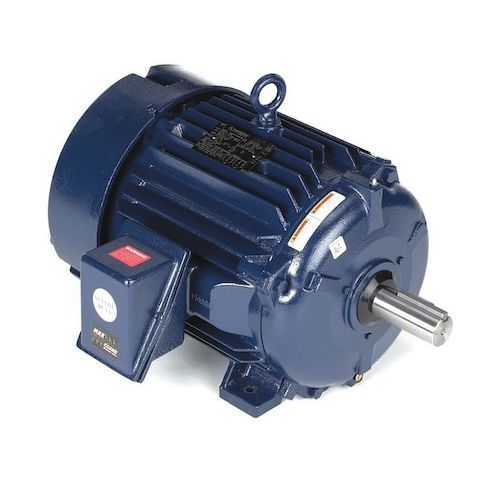

Three-Phase Severe Duty Motor, 25 hp HP, 284T Frame, 230/460V AC Voltage, 1, 772 RPM Nameplate RPM MPN:284TTFCD6837
Three-Phase Severe Duty Motor, 25 hp HP, 284T Frame, 230/460V AC Voltage, 1, 772 RPM Nameplate RPM
The Marathon Three-Phase Severe Duty Motor is designed for heavy-duty applications that require continuous operation in extreme temperatures. With a 25 hp rating and 1,772 RPM, this motor is ideal for use in manufacturing, processing, and material handling industries. Its totally enclosed fan-cooled design and Class H insulation ensure reliable performance and long lifespan. The motor's severe duty design and 1.15 service factor make it suitable for applications with fluctuating loads and temperatures up to 40°C. Perfect for use in Class 1 and 2 hazardous locations, this motor provides a cost-effective solution for demanding industrial applications.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed fan cooled for reliable performance in harsh environments
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pumps and Water Treatment Systems
- Heavy Industrial Manufacturing Equipment
- High-Speed Material Handling Systems
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 1,772 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 60.0/30.0 A, 284T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 25.80
- Package Height: 24.60
- Package Weight: 464.00
Product info last updated on March 12, 2026 11:02am UTC
Category: Motors
