Three-Phase Severe Duty Motor, 30 hp HP, 286TS Frame, 460V AC Voltage, 3, 550 RPM Nameplate RPM MPN:286TSTFCD6501
Three-Phase Severe Duty Motor, 30 hp HP, 286TS Frame, 460V AC Voltage, 3, 550 RPM Nameplate RPM

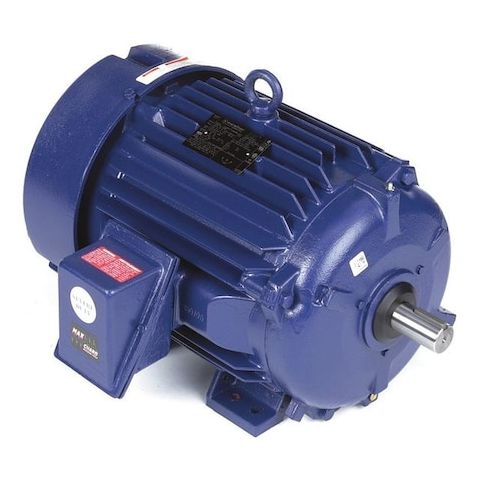

This three-phase severe duty motor from Marathon is designed for high-performance applications, delivering 30 horsepower at 3,550 RPM. Built with a robust 286TS frame and rated for 460V AC voltage, it's ideal for use in demanding environments such as manufacturing facilities, mining operations, and heavy industry settings. The motor's continuous duty cycle and totally enclosed fan-cooled design ensure reliable operation in temperatures up to 40°C. With a service factor of 1.15, it can handle peak loads with ease, making it a valuable asset for applications that require consistent and efficient power delivery.
Top product features:
- Three-Phase design for efficient power distribution
- Totally Enclosed Fan Cooled enclosure for safe and reliable operation in harsh environments
- Continuous duty cycle capability for uninterrupted performance in demanding applications
Top product applications:
- Heavy Industry Material Handling
- Oil and Gas Drilling and Pumping
- Chemical Processing Plants
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 30 hp HP, Nameplate RPM 3,550 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 35.5 A, 286TS Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 20.50
- Package Height: 18.50
- Package Weight: 507.00
Product info last updated on February 22, 2026 8:18pm UTC
Category: Motors
