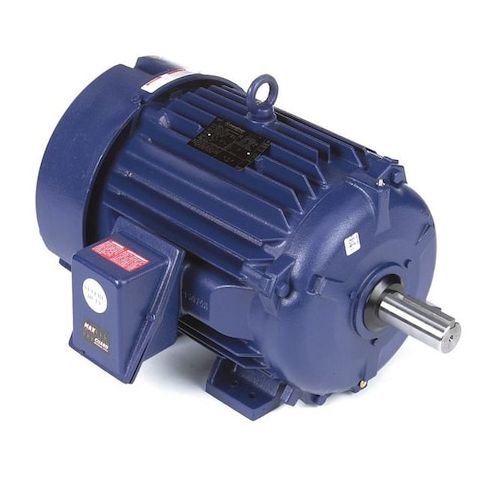

Three-Phase Severe Duty Motor, 20 hp HP, 286T Frame, 460V AC Voltage, 1, 180 RPM Nameplate RPM MPN:286TTFCD6576
Three-Phase Severe Duty Motor, 20 hp HP, 286T Frame, 460V AC Voltage, 1, 180 RPM Nameplate RPM
This 20 hp Three-Phase Severe Duty Motor from Marathon is designed for high-torque applications requiring continuous operation. Its totally enclosed fan-cooled design ensures reliable performance in harsh environments. The motor's severe duty rating makes it suitable for demanding applications such as conveyor systems, pumps, and compressors. With a 1,180 RPM nameplate speed and 26.0 A full load amps, this motor provides efficient power delivery. Its compact 286T frame and 460V AC voltage make it ideal for use in industrial settings, including hazardous locations. Order now and experience the reliability and performance of this severe duty motor.
Top product features:
- Three-Phase design provides a reliable power supply for heavy-duty applications.
- Totally Enclosed Fan Cooled design keeps the motor cool and extends its lifespan.
- Continuous Duty Cycle allows for uninterrupted operation without overheating or failure.
Top product applications:
- High-speed manufacturing lines
- Heavy-duty material handling equipment
- Large industrial pumps
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,180 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 26.0 A, 286T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 24.51
- Package Weight: 529.00
Product info last updated on February 5, 2026 8:27pm UTC
Category: Motors
