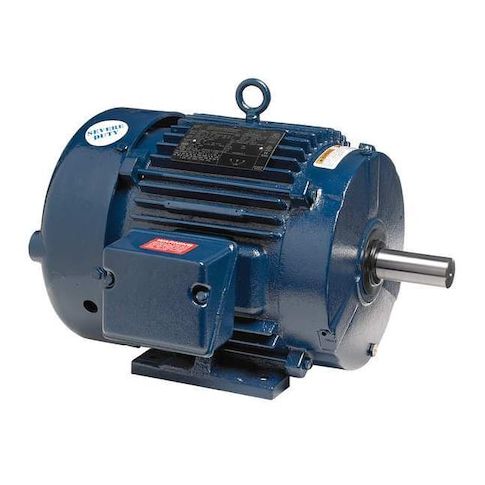

Three-Phase Severe Duty Motor, 40 HP, 324T Frame, 460V AC Voltage, 1782 rpm Nameplate RPM MPN:324TTFCD6526
Three-Phase Severe Duty Motor, 40 HP, 324T Frame, 460V AC Voltage, 1782 rpm Nameplate RPM
This 40 HP three-phase severe duty motor from Marathon is designed for demanding applications that require high performance and reliability. Built with a totally enclosed fan cooled motor enclosure, it operates efficiently in harsh environments, providing a nameplate RPM of 1782 and a nominal efficiency of 95.4%. Suitable for continuous duty, it's ideal for use in industrial settings such as manufacturing, oil and gas, and chemical processing. With a rigid base motor mounting type and ball bearings, it ensures smooth operation and extended lifespan. Its high service factor of 1.15 allows for increased capacity and flexibility in applications.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for smooth and durable operation
Top product applications:
- Pump and compressor applications in severe duty environments
- Heavy industrial machinery such as rock crushers and ore grinders
- High-speed centrifuges and other high-torque equipment
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 40 HP, Nameplate RPM 1782 rpm, Frame 324T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 47.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 26.00
- Package Height: 32.00
- Package Weight: 660.00
Product info last updated on February 16, 2026 6:08pm UTC
Category: Motors
