Three-Phase Severe Duty Motor, 25 hp HP, 324T Frame, 460V AC Voltage, 1, 184 RPM Nameplate RPM MPN:324TTFCD6576
Three-Phase Severe Duty Motor, 25 hp HP, 324T Frame, 460V AC Voltage, 1, 184 RPM Nameplate RPM

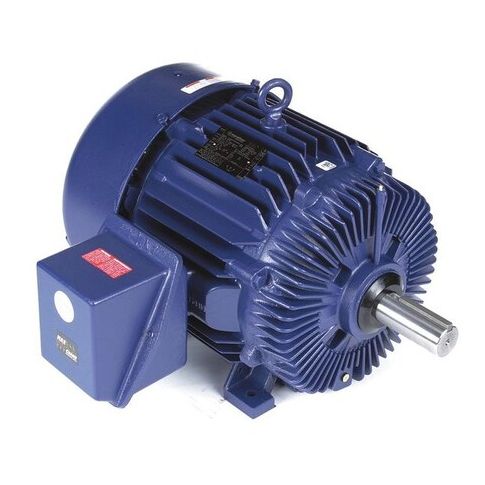

This severe duty motor from Marathon is designed for heavy-duty applications that require reliability and efficiency. With a 25 hp rating and 1,184 RPM, it provides consistent power for demanding tasks. Built for continuous duty cycles, it can withstand extreme temperatures and harsh environments. The totally enclosed fan-cooled design ensures optimal performance and protection from dust and debris. Suitable for use in factories, warehouses, and other industrial settings, this motor offers a cost-effective solution for applications that require high torque and low maintenance. Its compact 324T frame makes it ideal for space-constrained areas.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy losses.
- Totally enclosed fan-cooled design provides a cooler operating environment and increased motor lifespan.
- Continuous duty cycle enables the motor to operate at maximum capacity for extended periods without overheating.
Top product applications:
- Pump applications for high-pressure systems
- Industrial conveyor systems for heavy-duty materials
- Centrifugal compressors for oil and gas production
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 1,184 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 32 A, 324T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Class I, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 37.88
- Package Width: 31.88
- Package Height: 24.39
- Package Weight: 696.00
Product info last updated on February 3, 2026 11:04am UTC
Category: Motors
