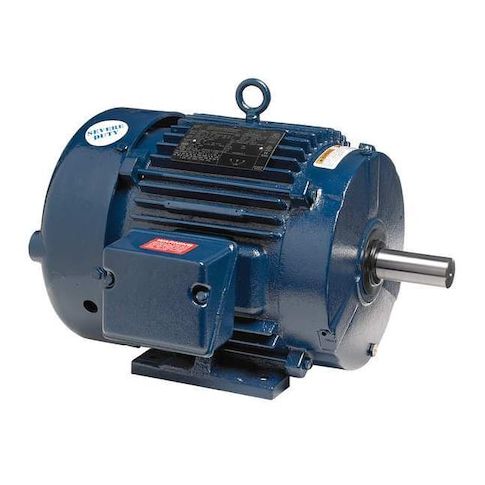

Three-Phase Severe Duty Motor, 50 hp HP, 326T Frame, 460V AC Voltage, 1, 782 RPM Nameplate RPM MPN:326TTFCD6526
Three-Phase Severe Duty Motor, 50 hp HP, 326T Frame, 460V AC Voltage, 1, 782 RPM Nameplate RPM
This severe duty motor is designed for high-performance applications, delivering 50 hp of power at 1,782 RPM. Built with a 326T frame and 460V AC voltage, it's ideal for use in industrial settings where reliability and efficiency are paramount. The motor's totally enclosed fan cooled design ensures optimal performance in extreme temperatures, making it suitable for use in hazardous locations. With a motor service factor of 1.15 and continuous duty cycle, this motor is perfect for applications such as pumps, fans, and compressors in industries like manufacturing, oil and gas, and power generation.
Top product features:
- Three-phase design for increased power and efficiency
- Totally Enclosed Fan Cooled enclosure for improved heat dissipation and reduced maintenance
- Continuous duty cycle capability for uninterrupted operation
Top product applications:
- Heavy Industry Applications
- High-Pressure Pump Drives
- Steel Mill Equipment
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 50 hp HP, Nameplate RPM 1,782 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 58.5 A, 326T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 37.88
- Package Width: 31.88
- Package Height: 24.39
- Package Weight: 795.00
Product info last updated on February 6, 2026 12:15pm UTC
Category: Motors
