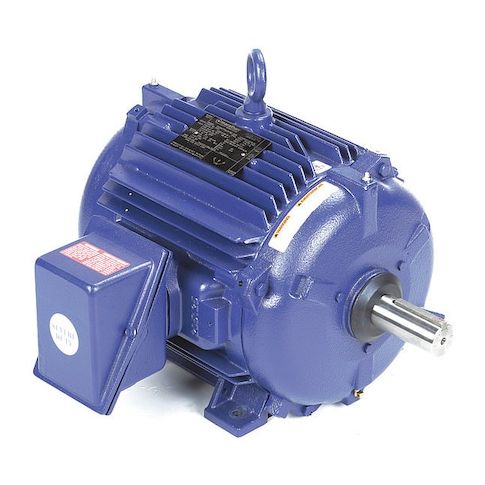

Kiln Motor, 3-Ph, 7.5 HP, 1170 RPM, 460V MPN:254TTTNA17077
Kiln Motor, 3-Ph, 7.5 HP, 1170 RPM, 460V
Kiln Duty Motor, Three Phase, Motor Design 3-Phase, 7 1/2 hp HP, Nameplate RPM 1,170 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 9.8 A, 254T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 90 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.25
- Package Width: 22.25
- Package Height: 18.00
- Package Weight: 318.00
Product info last updated on May 9, 2026 5:31pm UTC
Category: Motors
