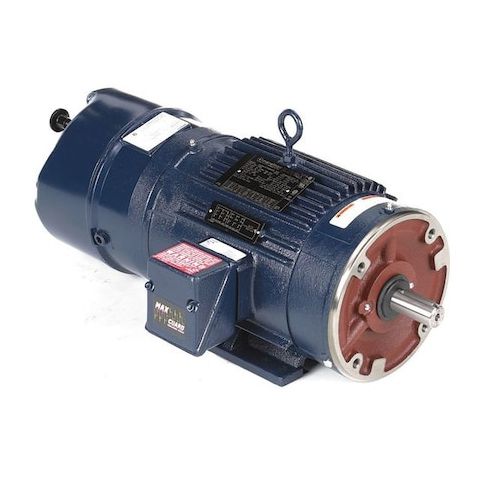

Vector Motor, 3-Phase, 5HP, 230/460V MPN:184THTS8056
Vector Motor, 3-Phase, 5HP, 230/460V
Vector Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 13.4/6.7 A, 184TC Frame, Torque 25 ft-lb, Max. Speed 5,400 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 161.00
Product info last updated on April 9, 2026 2:44pm UTC
Category: Motors
