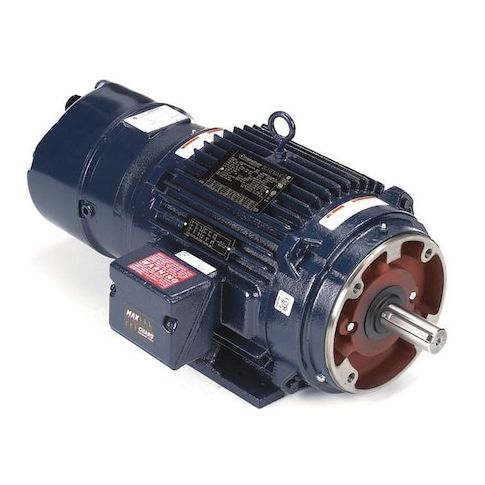

Vector Motor, 3-Phase, 7-1/2HP, 230/460V MPN:213THTS8071

Vector Motor, Three Phase, Motor Design Three-Phase, 7 1/2 HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 21.0/10.5 A, 213TC Frame, Torque 35 ft-lb, Max. Speed 4,200 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A
