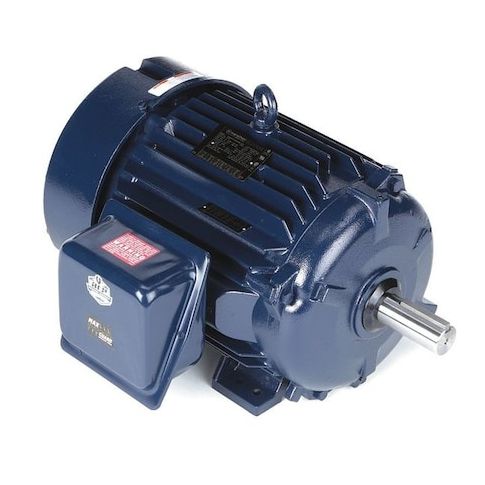

Vector Motor, 3-Phase, 30HP, 230/460V MPN:286THFNA8028
Vector Motor, 3-Phase, 30HP, 230/460V
Vector Motor, Three Phase, Motor Design 3-Phase, 30 HP, Nameplate RPM 1,776, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 77.0/38.5 A, 286T Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 21.89
- Package Weight: 371.00
Product info last updated on April 12, 2026 5:18am UTC
Category: Motors
