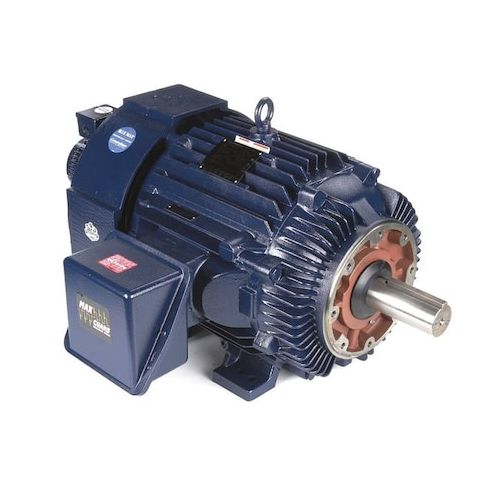

Vector Motor, 3-Phase, 75HP, 230/460V MPN:405THFS8378
Vector Motor, 3-Phase, 75HP, 230/460V
Vector Motor, Three Phase, Motor Design 3-Phase, 75 HP, Nameplate RPM 1,185, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 180.0/90.0 A, 405TC Frame, Max. Speed 1,200 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 56.00
- Package Width: 46.00
- Package Height: 29.42
- Package Weight: 1387.00
Product info last updated on April 11, 2026 4:50am UTC
Category: Motors
