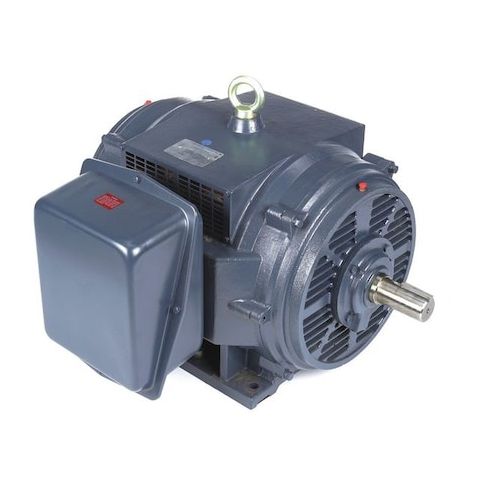

Three-Phase General Purpose Motor, 125 HP, 404TS Frame, 460V AC Voltage, 3575 rpm Nameplate RPM MPN:404TSTDCD6001
Three-Phase General Purpose Motor, 125 HP, 404TS Frame, 460V AC Voltage, 3575 rpm Nameplate RPM
This 125 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial and commercial use. Its 460V AC voltage and 3575 rpm nameplate speed make it suitable for high-demand tasks. The motor features a rigid base mounting type and open drip-proof enclosure design, providing durability and protection in harsh environments. With a service factor of 1.15 and ball bearings, this motor offers reliable operation and long lifespan. Ideal for applications such as pumps, fans, and compressors, it is CSA certified and UL recognized, ensuring compliance with industry standards.
Top product features:
- Three-phase operation allows for efficient use of electrical power
- Open drip proof motor enclosure design provides protection from dust and moisture
- Ball motor bearings ensure smooth and quiet operation
Top product applications:
- Industrial manufacturing facilities
- Pulp and paper mills
- Power plants
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 125 HP, Nameplate RPM 3575 rpm, Frame 404TS, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 139.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 3001-3600, CSA Certified, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 37.88
- Package Width: 31.88
- Package Height: 28.66
- Package Weight: 1172.00
