Three-Phase General Purpose Motor, 100 HP, 404T Frame, 230/460V AC Voltage, 1788 rpm Nameplate RPM MPN:404TTDCD6060
Three-Phase General Purpose Motor, 100 HP, 404T Frame, 230/460V AC Voltage, 1788 rpm Nameplate RPM

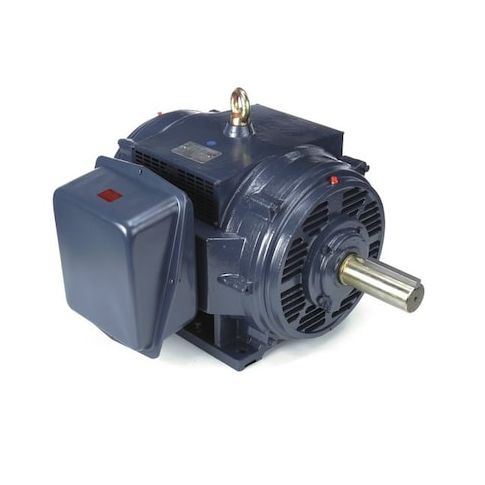

This 100 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial and commercial settings. With a nameplate RPM of 1788, it provides reliable and efficient operation in continuous duty cycles. The motor's open drip-proof enclosure design and rigid base mounting ensure durability and stability. Its high efficiency rating of 95.4% reduces energy costs and minimizes environmental impact. Suitable for use in applications such as pumps, fans, and conveyor systems, this motor is a reliable choice for industries that require high-performance and long-lasting equipment.
Top product features:
- Three-Phase General Purpose Motor
- Operates at 1788 rpm
- Has an open drip proof motor enclosure design
Top product applications:
- Industrial Conveyors
- Pumps and Pneumatic Systems
- Machine Tools
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 100 HP, Nameplate RPM 1788 rpm, Frame 404T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 228.0/114.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 45.00
- Package Width: 39.00
- Package Height: 30.00
- Package Weight: 1280.00
Product info last updated on February 12, 2026 12:49am UTC
Category: Motors
