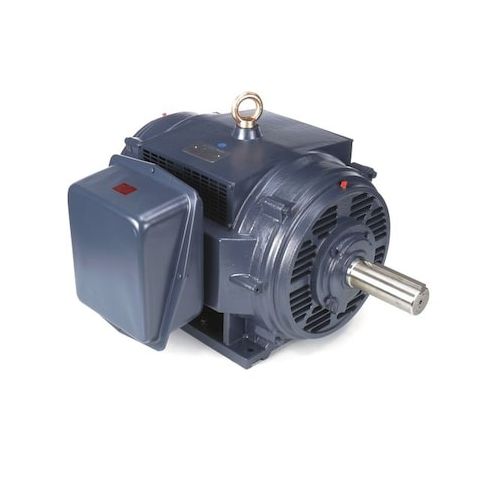

Three-Phase General Purpose Motor, 75 HP, 405T Frame, 230/460V AC Voltage, 1188 rpm Nameplate RPM MPN:405TTDCD6081
Three-Phase General Purpose Motor, 75 HP, 405T Frame, 230/460V AC Voltage, 1188 rpm Nameplate RPM
This 75 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial and commercial settings. With a rigid base motor mounting type and continuous duty operation, it can handle demanding tasks with ease. The motor's 94.5% nominal efficiency and Class F insulation ensure reliable performance and long lifespan. Suitable for use in temperatures up to 40 degrees C, it's ideal for applications such as pumps, fans, and conveyor systems. The motor's compact design and durable construction make it a reliable choice for heavy-duty industrial use.
Top product features:
- Three-Phase AC Voltage Capability
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps and water treatment systems
- Industrial conveyor systems
- Manufacturing machinery and equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 75 HP, Nameplate RPM 1188 rpm, Frame 405T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 174.0/87.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 28.66
- Package Weight: 1333.00
Product info last updated on January 27, 2026 2:15pm UTC
Category: Motors
