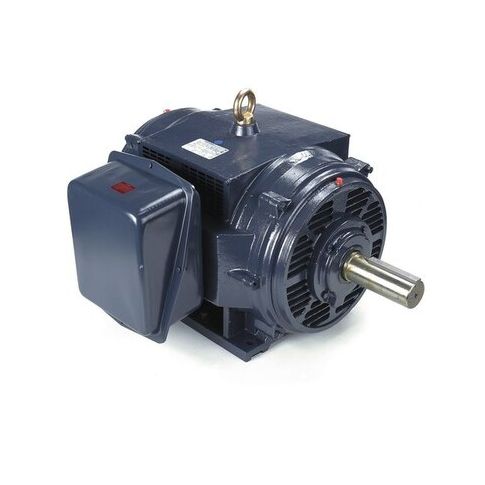

Three-Phase General Purpose Motor, 125 HP, 405T Frame, 460V AC Voltage, 1785 rpm Nameplate RPM MPN:405TTDCD6060
Three-Phase General Purpose Motor, 125 HP, 405T Frame, 460V AC Voltage, 1785 rpm Nameplate RPM
This high-performance 125 HP three-phase general purpose motor is designed for demanding industrial applications. With a nameplate RPM of 1785 and a nominal efficiency of 95.4%, it provides reliable and efficient operation. Suitable for continuous duty, it features a rigid base motor mounting type and ball motor bearings for smooth and long-lasting performance. The motor is CSA certified and UL recognized, ensuring compliance with industry standards. Ideal for use in manufacturing, processing, and other heavy-duty applications, this motor offers a durable and efficient solution for powering machinery and equipment.
Top product features:
- Three-phase operation allows for efficient use of power and reduced energy consumption.
- Ball bearings provide smooth and durable motor operation.
- Cast iron frame construction provides a rugged and long-lasting motor design.
Top product applications:
- Pump applications
- Industrial conveyor systems
- Manufacturing machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 125 HP, Nameplate RPM 1785 rpm, Frame 405T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 142.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800, CSA Certified, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 45.00
- Package Width: 39.50
- Package Height: 33.00
- Package Weight: 1420.00
Product info last updated on January 27, 2026 12:08pm UTC
Category: Motors
