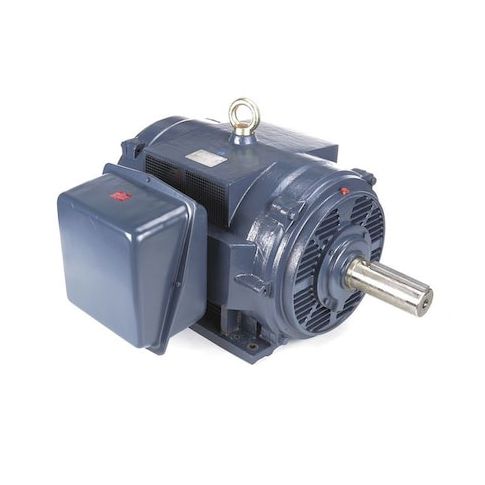

Three-Phase General Purpose Motor, 100 HP, 444T Frame, 230/460V AC Voltage, 1190 rpm Nameplate RPM MPN:444TTDCD6077
Three-Phase General Purpose Motor, 100 HP, 444T Frame, 230/460V AC Voltage, 1190 rpm Nameplate RPM
This 100 HP three-phase general purpose motor from Marathon is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. With a nameplate RPM of 1190 and a high efficiency rating of 95%, this motor provides reliable and efficient operation. Its open drip proof motor enclosure design and rigid base mounting type ensure easy installation and maintenance. Suitable for continuous duty, this motor is ideal for applications where high torque and power are required, such as pumps, fans, and conveyor systems. Its durable cast iron frame and ball bearings provide long-lasting performance in harsh environments.
Top product features:
- Three-Phase AC Voltage Capability
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial manufacturing plants
- Pulp and paper mills
- Chemical processing plants
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 100 HP, Nameplate RPM 1190 rpm, Frame 444T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 232.0/116.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 31.34
- Package Weight: 1675.00
Product info last updated on February 19, 2026 9:19am UTC
Category: Motors
