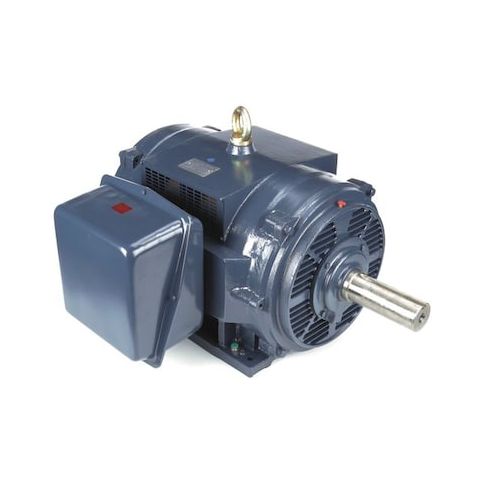

Three-Phase General Purpose Motor, 125 HP, 445T Frame, 460V AC Voltage, 1190 rpm Nameplate RPM MPN:445TTDCD6076
Three-Phase General Purpose Motor, 125 HP, 445T Frame, 460V AC Voltage, 1190 rpm Nameplate RPM
This 125 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial processes, manufacturing, and commercial facilities. With a nameplate RPM of 1190 and a voltage rating of 460V AC, this motor provides reliable power and efficiency in demanding environments. Its open drip-proof motor enclosure and rigid base mounting ensure secure installation and long-term performance. CSA certified and UL recognized, this motor is suitable for continuous duty and can operate in temperatures up to 40°C. Ideal for use in industrial settings, it offers high efficiency and reliability.
Top product features:
- Three-Phase General Purpose Motor design provides a high level of power and efficiency.
- Ball Motor Bearings ensure smooth and reliable motor operation.
- Rigid Base Motor Mounting Type provides a secure and stable foundation for the motor.
Top product applications:
- Industrial Automation
- Pumping Systems
- Material Handling Equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 125 HP, Nameplate RPM 1190 rpm, Frame 445T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 145.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1,101-1,200, CSA Certified, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 31.34
- Package Weight: 1867.00
Product info last updated on February 28, 2026 5:35am UTC
Category: Motors
