Three-Phase General Purpose Motor, 200 HP, 445T Frame, 460V AC Voltage, 1790 rpm Nameplate RPM MPN:445TTDCD6060
Three-Phase General Purpose Motor, 200 HP, 445T Frame, 460V AC Voltage, 1790 rpm Nameplate RPM

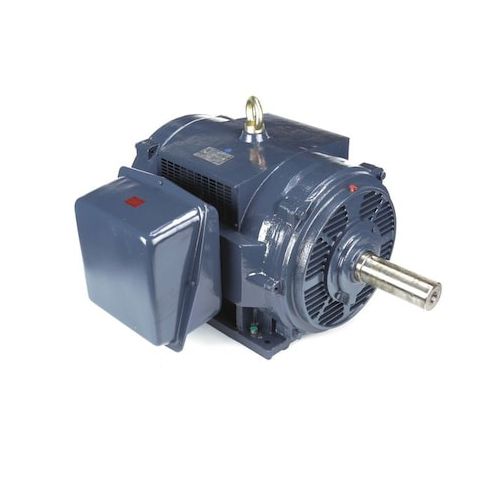

The Marathon 200 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of industrial applications. With its 460V AC voltage and 1790 rpm nameplate RPM, this motor is suitable for use in manufacturing facilities, processing plants, and other high-volume production environments. Its open drip-proof motor enclosure design and rigid base motor mounting type ensure a durable and long-lasting performance. Additionally, its high efficiency and continuous duty rating make it an ideal choice for applications where energy savings and uptime are critical. Suitable for use in a variety of industries, including manufacturing, oil and gas, and more.
Top product features:
- Three-phase operation provides a balanced power supply.
- Open drip-proof motor enclosure design protects against dust and moisture.
- Ball bearings allow for smooth and quiet motor operation.
Top product applications:
- Pump applications due to its high horsepower rating and ability to handle heavy loads
- Industrial processing applications such as chemical plants or food processing facilities where a reliable and efficient motor is required
- Power generation or transmission applications where a high-torque motor is needed to drive large machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 200 HP, Nameplate RPM 1790 rpm, Frame 445T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 223.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 1701-1800, CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 31.34
- Package Weight: 2117.00
Product info last updated on May 1, 2026 8:17pm UTC
Category: Motors
