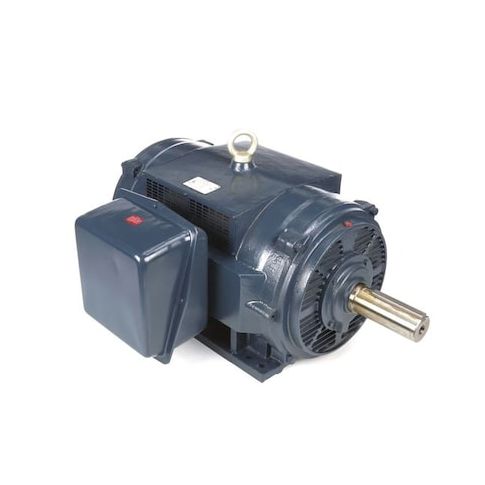

Three-Phase General Purpose Motor, 200 HP, 449T Frame, 460V AC Voltage, 1188 rpm Nameplate RPM MPN:449TTDCD6076
Three-Phase General Purpose Motor, 200 HP, 449T Frame, 460V AC Voltage, 1188 rpm Nameplate RPM
This 200 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications in a variety of industries. Its open drip-proof motor enclosure and rigid base motor mounting type make it ideal for use in harsh environments. With a nameplate RPM of 1188 and a maximum ambient temperature of 40 degrees C, this motor can withstand demanding conditions. Its high efficiency and continuous duty rating make it a reliable choice for applications such as manufacturing, pumping, and HVAC. Its compact size and rugged design also make it suitable for use in confined spaces.
Top product features:
- Three-phase design for high power applications
- Open drip proof motor enclosure for protection against dust and moisture
- Ball bearings for smooth and quiet operation
Top product applications:
- Industrial manufacturing plants
- Pulp and paper mills
- Chemical processing facilities
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 200 HP, Nameplate RPM 1188 rpm, Frame 449T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 230.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1,101-1,200
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 31.34
- Package Weight: 2369.00
Product info last updated on February 25, 2026 1:28am UTC
Category: Motors
