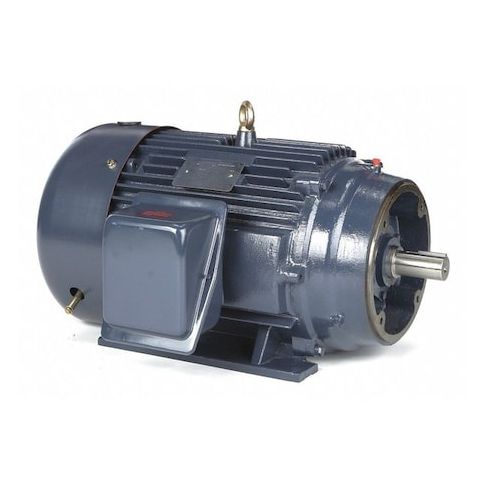

Three-Phase General Purpose Motor, 25 HP, 284TSC Frame, 230/460V AC Voltage, 3555 rpm Nameplate RPM MPN:284TSTFCD6003
Three-Phase General Purpose Motor, 25 HP, 284TSC Frame, 230/460V AC Voltage, 3555 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 3555 rpm, Frame 284TSC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 60.0/30.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.25
- Package Width: 22.25
- Package Height: 18.00
- Package Weight: 490.00
Product info last updated on January 27, 2026 4:28pm UTC
Category: Motors
