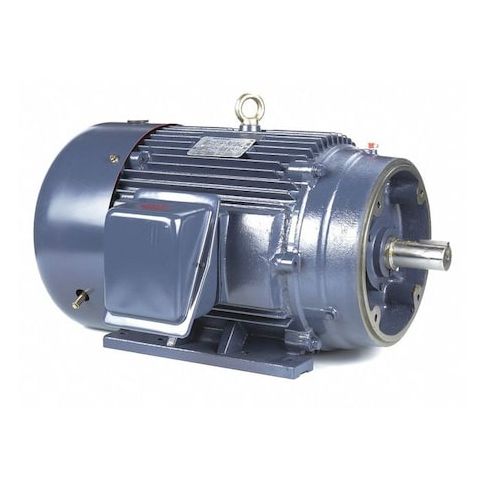

Three-Phase General Purpose Motor, 40 HP, 324TS Frame, 230/460V AC Voltage, 3565 rpm Nameplate RPM MPN:324TSTFCD6003
Three-Phase General Purpose Motor, 40 HP, 324TS Frame, 230/460V AC Voltage, 3565 rpm Nameplate RPM
This 40 HP three-phase general purpose motor from Marathon is designed for demanding industrial applications. With a nameplate RPM of 3565 and a high efficiency rating of 95.8%, it provides reliable and efficient power for heavy-duty operations. The totally enclosed fan cooled motor enclosure protects against harsh environments and ensures quiet operation. Suitable for continuous duty, this motor is ideal for use in manufacturing facilities, power generation, and other industrial settings where high performance and durability are required. Its cast iron frame and ball bearings provide long-lasting reliability and minimize maintenance needs.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Capability
Top product applications:
- Pump applications in chemical plants
- Centrifugal compressor drives in oil and gas production
- Textile mill machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 40 HP, Nameplate RPM 3565 rpm, Frame 324TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 92.0/46.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 25.32
- Package Weight: 647.00
Product info last updated on January 27, 2026 2:00pm UTC
Category: Motors
