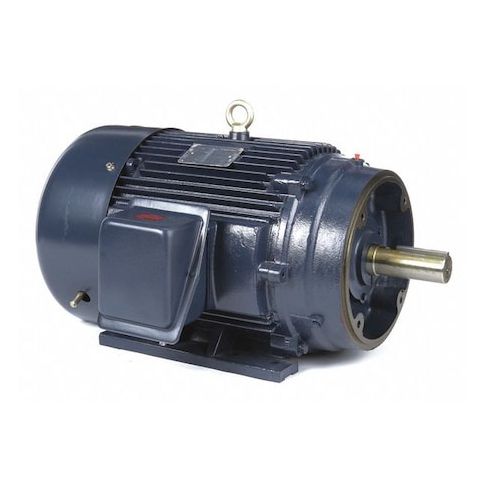

Three-Phase General Purpose Motor, 40 HP, 324TC Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM MPN:324TTFCD6028
Three-Phase General Purpose Motor, 40 HP, 324TC Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM
This 40 HP, 324TC frame three-phase general purpose motor from Marathon is designed for demanding industrial applications. With a nameplate RPM of 1782 and a nominal efficiency of 94.5%, it provides reliable and efficient operation. Suitable for continuous duty, this motor features a totally enclosed fan cooled design and rigid base mounting for added stability. Its high service factor of 1.15 and ball bearings ensure long motor life. Ideal for use in manufacturing, processing, and other industrial settings, this motor is a reliable choice for applications that require high torque and power. Its compact design makes it easy to integrate into existing systems.
Top product features:
- Three-phase operation provides efficient power distribution for high-power applications.
- Totally Enclosed Fan Cooled Motor Enclosure Design enhances motor reliability and durability in harsh environments.
- Ball Motor Bearings ensure smooth and quiet motor operation.
Top product applications:
- Pump applications
- Industrial machinery
- Conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 40 HP, Nameplate RPM 1782 rpm, Frame 324TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 95.0/47.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 25.32
- Package Weight: 665.00
Product info last updated on February 4, 2026 8:09pm UTC
Category: Motors
