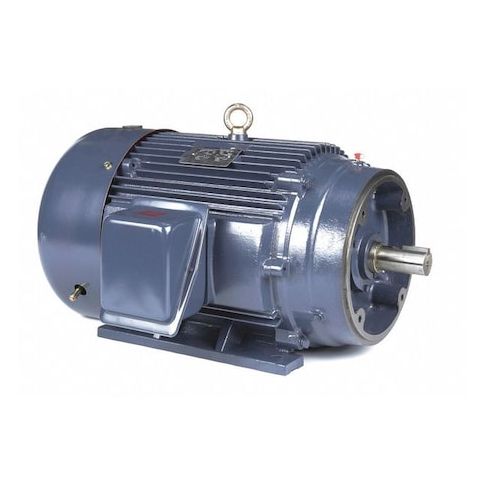

Three-Phase General Purpose Motor, 50 HP, 326TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM MPN:326TSTFCD6003
Three-Phase General Purpose Motor, 50 HP, 326TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM
This 50 HP three-phase general purpose motor is designed for demanding applications requiring high reliability and efficiency. Suitable for use in a variety of settings, including industrial, manufacturing, and commercial environments, this motor offers a high nameplate RPM of 3568, making it ideal for applications where high speed is necessary. With a robust cast iron frame and rigid base motor mounting, it provides stability and durability. Additionally, its 95.8 percent nominal efficiency and continuous duty rating ensure optimal performance and reduced energy costs. Its compact size and CW/CCW motor shaft rotation make it versatile and easy to integrate into existing systems.
Top product features:
- Three-Phase AC Voltage Capability: 230/460V AC
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings for Smooth Operation
Top product applications:
- Pump applications for high-pressure water or chemical systems
- Compressor applications for air or gas systems
- Fans for large industrial ventilation or HVAC systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 50 HP, Nameplate RPM 3568 rpm, Frame 326TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 113.0/56.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 25.32
- Package Weight: 704.00
Product info last updated on January 27, 2026 9:26pm UTC
Category: Motors
