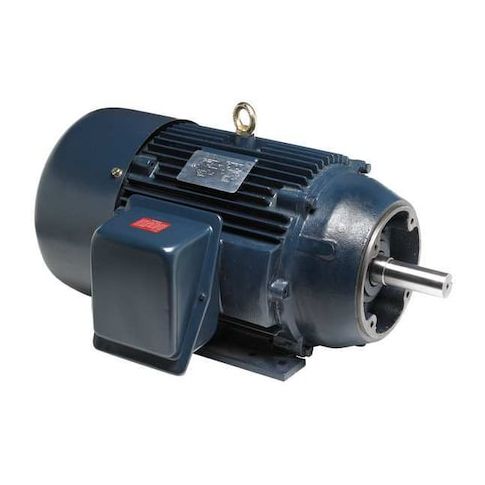

Three-Phase General Purpose Motor, 50 HP, 326TC Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM MPN:326TTFCD6028
Three-Phase General Purpose Motor, 50 HP, 326TC Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM
This 50 HP three-phase general purpose motor from Marathon is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. Its totally enclosed fan cooled design and rigid base motor mounting provide optimal cooling and stability, while its cast iron frame ensures durability and long lifespan. With a high efficiency rating of 94.5% and a service factor of 1.15, this motor is ideal for continuous duty applications. Its compact size and CW/CCW motor shaft rotation make it suitable for a variety of applications, including conveyor systems, pumps, and compressors.
Top product features:
- Three-Phase AC Voltage Capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial manufacturing
- Material handling equipment
- Pumping stations
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 50 HP, Nameplate RPM 1780 rpm, Frame 326TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 117.0/58.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 31 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 25.32
- Package Weight: 702.00
Product info last updated on February 5, 2026 9:34am UTC
Category: Motors
