Three-Phase General Purpose Motor, 60 HP, 364TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM MPN:364TSTFCD6003
Three-Phase General Purpose Motor, 60 HP, 364TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM

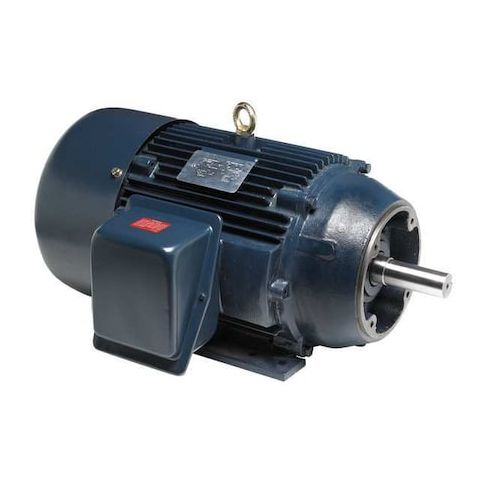

This 60 HP three-phase general purpose motor from Marathon is designed for demanding applications that require high efficiency and reliability. With a nameplate RPM of 3568, it provides consistent performance in a wide range of industries, including manufacturing, oil and gas, and water treatment. Its totally enclosed fan cooled motor enclosure design ensures optimal cooling and protection from harsh environments. Suitable for continuous duty, this motor offers a high service factor of 1.15 and a nominal efficiency of 93.6%. Its rigid base mounting type and cast iron frame provide a solid foundation for heavy-duty applications.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Industrial textile manufacturing
- Pumping systems for irrigation and water treatment
- Heavy-duty conveyor belt systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 60 HP, Nameplate RPM 3568 rpm, Frame 364TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 135.0/67.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 25.32
- Package Weight: 974.00
Product info last updated on February 23, 2026 2:10pm UTC
Category: Motors
