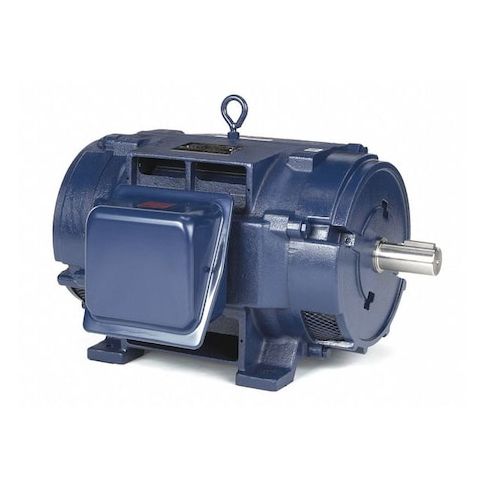

Three-Phase General Purpose Motor, 40 HP, 324TS Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM MPN:324TSTDBD6026
Three-Phase General Purpose Motor, 40 HP, 324TS Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM
This 40 HP three-phase general purpose motor from Marathon is designed for demanding industrial applications, offering high efficiency and reliability. With a nameplate RPM of 1780 and a voltage range of 230/460V AC, this motor is suitable for a wide range of uses, including heavy machinery, pumps, and conveyor systems. Its open drip proof motor enclosure design and rigid base motor mounting type ensure easy installation and maintenance. With a service factor of 1.15 and a maximum ambient temperature of 40 degrees C, this motor can operate in a variety of environments, making it a versatile solution for industrial applications.
Top product features:
- Three-Phase AC Voltage Capability
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial Pump Systems
- Pulp and Paper Mills
- Textile Manufacturing
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 40 HP, Nameplate RPM 1780 rpm, Frame 324TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 95.5/47.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 24.36
- Package Weight: 462.00
