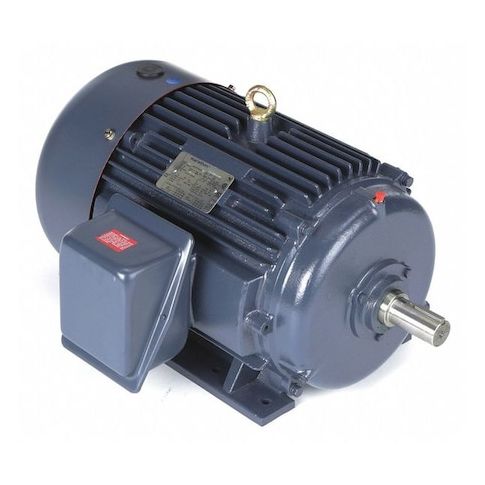

Three-Phase General Purpose Motor, 25 HP, 284TS Frame, 230/460V AC Voltage, 3555 rpm Nameplate RPM MPN:284TSTFCD6001
Three-Phase General Purpose Motor, 25 HP, 284TS Frame, 230/460V AC Voltage, 3555 rpm Nameplate RPM
This high-performance 25 HP three-phase general purpose motor from Marathon is designed for demanding industrial applications. Its totally enclosed fan cooled motor enclosure design ensures reliable operation in harsh environments, while its rigid base motor mounting type provides stable and secure installation. With a nameplate RPM of 3555, this motor delivers efficient power output and its continuous duty rating makes it suitable for applications requiring consistent operation. Ideal for use in manufacturing, processing, and material handling, this motor offers high efficiency and durability, making it a valuable asset for any industrial operation.
Top product features:
- Three-Phase Design: This product is designed to operate with three-phase electrical power, providing efficient and reliable performance.
- Totally Enclosed Fan Cooled Motor Enclosure: The motor is enclosed in a protective casing that prevents dust and moisture from entering, ensuring safe and reliable operation in various environments.
- Ball Motor Bearings: The motor uses ball bearings, which provide smooth and quiet operation, reducing wear and tear on the motor and extending its lifespan.
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 3555 rpm, Frame 284TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 60.0/30.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.25
- Package Width: 22.25
- Package Height: 18.00
- Package Weight: 510.00
