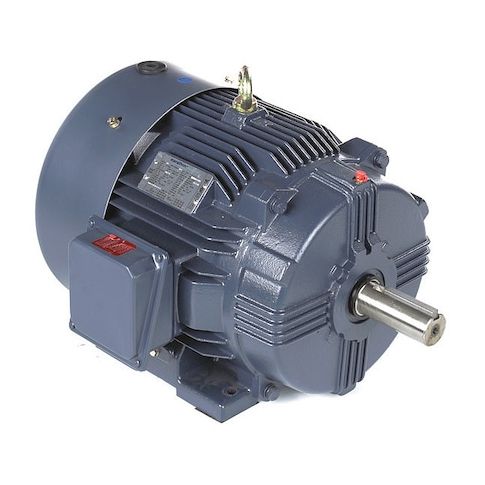

Three-Phase General Purpose Motor, 25 HP, 284T Frame, 230/460V AC Voltage, 1772 rpm Nameplate RPM MPN:284TTFCD6026
Three-Phase General Purpose Motor, 25 HP, 284T Frame, 230/460V AC Voltage, 1772 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1772 rpm, Frame 284T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 60.0/30.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 32.00
- Package Height: 27.00
- Package Weight: 529.00
Product info last updated on March 12, 2026 3:02am UTC
Category: Motors
