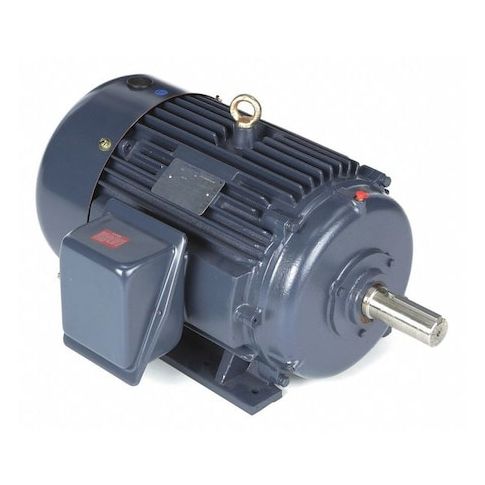

Three-Phase General Purpose Motor, 25 HP, 284T Frame, 575V AC Voltage, 1772 rpm Nameplate RPM MPN:284TTFCD6030
Three-Phase General Purpose Motor, 25 HP, 284T Frame, 575V AC Voltage, 1772 rpm Nameplate RPM
This 25 HP, three-phase general purpose motor from Marathon is designed for demanding industrial applications. With a nameplate RPM of 1772 and a maximum ambient temperature of 40°C, it can operate in a variety of environments. The motor's totally enclosed fan cooled design and cast iron frame ensure durability and reliability. Suitable for continuous duty applications, it offers a nominal efficiency of 94.5 percent. Ideal for use in manufacturing, processing, and other industrial settings, this motor provides a cost-effective solution for powering machinery and equipment. Its compact design and rigid base mounting make it easy to integrate into existing systems.
Top product features:
- Three-Phase General Purpose Motor
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial manufacturing
- Pumping systems
- Paper mills
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1772 rpm, Frame 284T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 24.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.25
- Package Width: 22.25
- Package Height: 18.00
- Package Weight: 490.00
Product info last updated on February 26, 2026 6:59am UTC
Category: Motors
